Time Traveler Virtual Library - Images and information on the major components

Time Traveler - Owners Manual (24 pages)
Time Traveler - Sony Trinitron Owners Manual (23 pages)
Time Traveler - Schematics (7 pages)

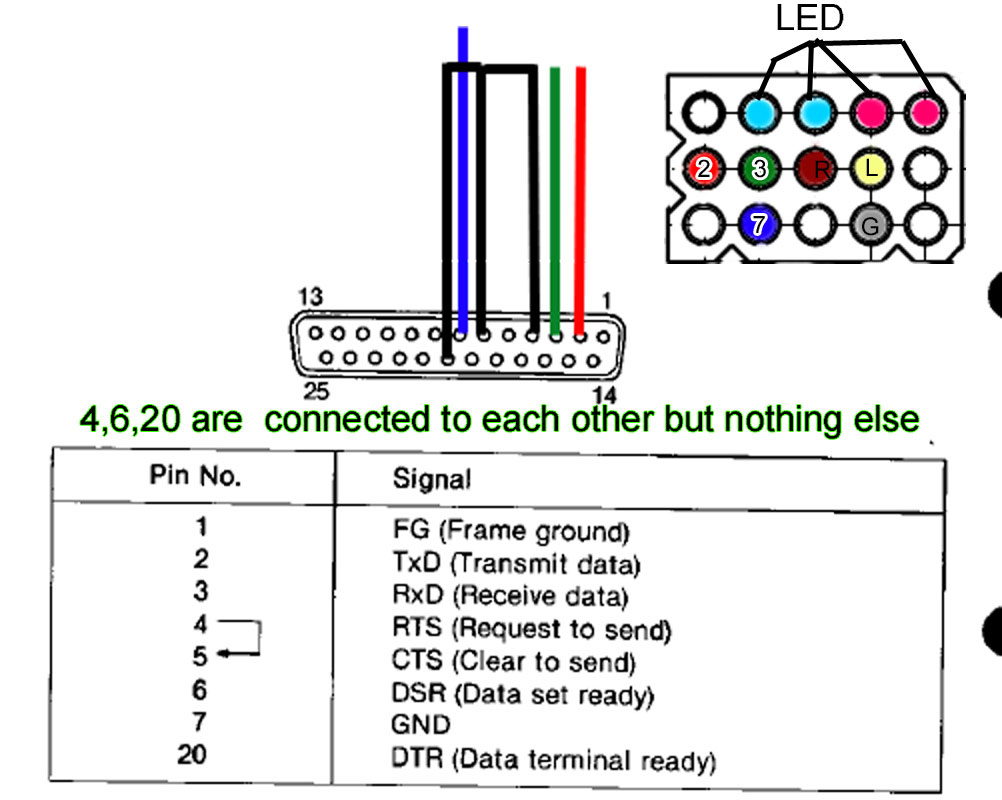

Time Traveler - Pinout for serial cable
Time Traveler - DIP Switch Settings

Time Traveler - ROM Images



Compatible Laserdisc Players - Sony LDP-1450, Sony LDP-1550, Sony LDP-2000, Sony LDP-3600D, Pioneer LD-V4200

Sony LDP-1450 - Operating Instructions (19 pages)
Sony LDP-1450 - Service Manual (98 pages)
Sony LDP-2000/2100/2200 - Operating Instructions (23 pages)
Sony LDP-xxxx - Command Set Info

Aftermarket Laserdisc Player Replacement - The Dexter board is a drop-in replacement that substitutes for the laserdisc player and plays the video digitally.

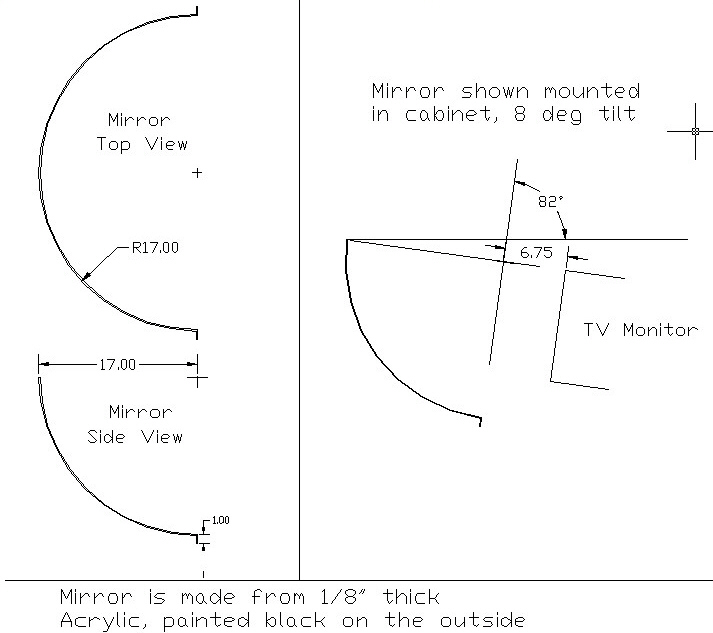

Mirror - See a Diagram of the Mirror that drives the hologram illusion inside a Time Traveler game.

4800 Baud Rate - Unlike other games, which use a 9600 baud rate, Time Traveler requires the Sony laserdisc player to be set at 4800 baud, with the DIP switches (or rotary switch) on the back of the player set as follows:
Sony LDP-1450  -  1-down 2-down 3-up 4-down *
Sony LDP-1550  -  1-down 2-down 3-up 4-down
Sony LDP-2000  -  1-up 2-down 3-up 4-down
Sony LDP-3600D  -  Turn the rotary switch to the 4800 baud position.

* The Sony LDP-1450 has an additional bank of six switches that must all be set in the down position.

(USA, Japan, 1991)
